硬管系列—ROV返回 >>
概 况型号参数

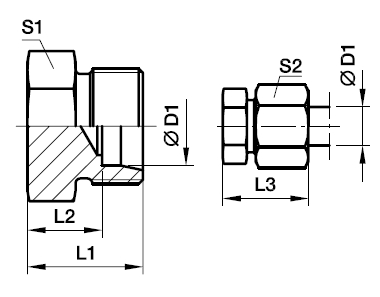

ROV EO24°锥 管端堵头
| 系列 | 钢管外径 | 重量 | PN (bar) | |||||||
| D1 | L1 | L2 | L3 | S1 | S2 | g/件 | 订货号 | CF | 71 | |
| L | 6 | 14 | 7 | 22 | 12 | 14 | 8 | ROV06L | 315 | 315 |
| 8 | 15 | 8 | 23 | 14 | 17 | 13 | ROV08L | 315 | 315 | |
| 10 | 16 | 9 | 24 | 17 | 19 | 17 | ROV10L | 315 | 315 | |
| 12 | 17 | 10 | 25 | 19 | 22 | 24 | ROV12L | 315 | 315 | |
| 15 | 18 | 11 | 26 | 24 | 27 | 41 | ROV15L | 315 | 315 | |
| 18 | 19 | 11.5 | 28 | 27 | 32 | 56 | ROV18L | 315 | 315 | |
| 22 | 21 | 13.5 | 30 | 32 | 36 | 84 | ROV22L | 160 | 160 | |
| 28 | 22 | 14.5 | 31 | 41 | 41 | 138 | ROV28L | 160 | 160 | |
| 35 | 25 | 14.5 | 36 | 46 | 50 | 203 | ROV35L | 160 | 160 | |
| 42 | 27 | 16 | 39 | 55 | 60 | 318 | ROV42L | 160 | 160 | |
| S | 6 | 18 | 11 | 26 | 14 | 17 | 17 | ROV06S | 630 | 630 |
| 8 | 20 | 13 | 28 | 17 | 19 | 28 | ROV08S | 630 | 630 | |
| 10 | 20 | 12.5 | 29 | 19 | 22 | 33 | ROV10S | 630 | 630 | |
| 12 | 22 | 14.5 | 31 | 22 | 24 | 50 | ROV12S | 630 | 630 | |
| 16 | 24 | 15.5 | 34 | 27 | 30 | 75 | ROV16S | 400 | 400 | |
| 20 | 28 | 17.5 | 39 | 32 | 36 | 125 | ROV20S | 400 | 400 | |
| 25 | 32 | 20 | 44 | 41 | 46 | 229 | ROV25S | 400 | 400 | |
| 30 | 34 | 20.5 | 47 | 46 | 50 | 310 | ROV30S | 400 | 400 | |
| 38 | 39 | 23 | 54 | 55 | 60 | 508 | ROV38S | 315 | 315 | |
