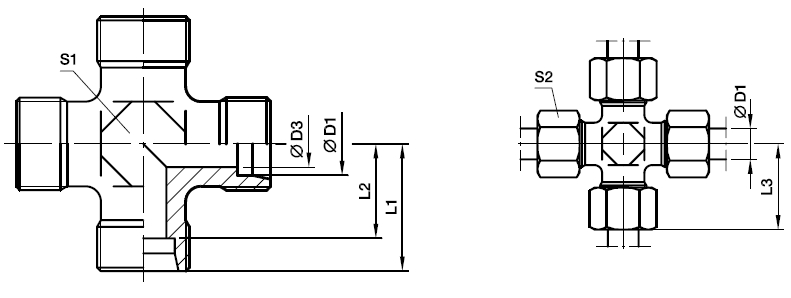

K-EO24°锥 四通接头
| 系列 | 钢管外径D1 | 重量g/件 | PN (bar) | ||||||||
| D3 | L1 | L2 | L3 | S1 | S2 | 订货号 | CF | 71 | |||
| L | 6 | 4 | 19 | 12 | 27 | 12 | 14 | 35 | K06L | 315 | 315 |
| 8 | 6 | 21 | 14 | 29 | 12 | 17 | 40 | K08L | 315 | 315 | |
| 10 | 8 | 22 | 15 | 30 | 14 | 19 | 52 | K10L | 315 | 315 | |
| 12 | 10 | 24 | 17 | 32 | 17 | 22 | 69 | K12L | 315 | 315 | |
| 15 | 12 | 28 | 21 | 36 | 19 | 27 | 130 | K15L | 315 | 315 | |
| 18 | 15 | 31 | 23.5 | 40 | 24 | 32 | 188 | K18L | 315 | 315 | |
| 22 | 19 | 35 | 27.5 | 44 | 27 | 36 | 251 | K22L | 160 | 160 | |
| 28 | 24 | 38 | 30.5 | 47 | 36 | 41 | 392 | K28L | 160 | 160 | |
| 35 | 30 | 45 | 34.5 | 56 | 41 | 50 | 618 | K35L | 160 | 160 | |
| 42 | 36 | 51 | 40 | 63 | 50 | 60 | 905 | K42L | 160 | 160 | |
| S | 6 | 4 | 23 | 16 | 31 | 12 | 17 | 58 | K06S | 630 | 630 |
| 8 | 5 | 24 | 17 | 32 | 14 | 19 | 82 | K08S | 630 | 630 | |
| 10 | 7 | 25 | 17.5 | 34 | 17 | 22 | 97 | K10S | 630 | 630 | |
| 12 | 8 | 29 | 21.5 | 38 | 17 | 24 | 146 | K12S | 630 | 630 | |
| 16 | 12 | 33 | 24.5 | 43 | 24 | 30 | 220 | K16S | 400 | 400 | |
| 20 | 16 | 37 | 26.5 | 48 | 27 | 36 | 339 | K20S | 315 | 315 | |
| 25 | 20 | 42 | 30 | 54 | 36 | 46 | 576 | K25S | 315 | 315 | |
| 30 | 25 | 49 | 35.5 | 62 | 41 | 50 | 843 | K30S | 315 | 315 | |
| 38 | 32 | 57 | 41 | 72 | 50 | 60 | 1350 | K38S | 315 | 315 | |
订货示例：
碳钢接头：K12LCFX
316Ti不锈钢：K12L71X
注：订货号不含螺母卡套
样本尺寸仅供参考，请以实际产品尺寸为准。
