概 况型号参数

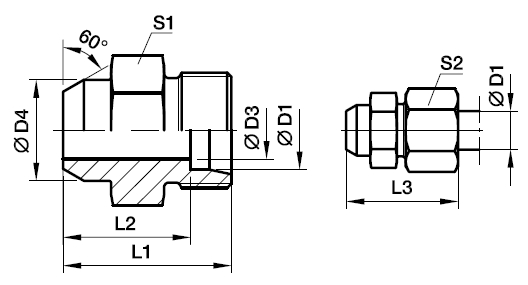

AS 焊接端/EO24°锥 焊接接头
| 系列 | 钢管外径 | 重量 | PN (bar) | |||||||||
| D1 | D3 | D4 | L1 | L2 | L3 | S1 | S2 | g/件 | 订货号 | 碳钢 | 不锈钢 | |
| (X) | (71X) | |||||||||||
| L | 6 | 4 | 10 | 21 | 14 | 29 | 12 | 14 | 11 | AS06L | 315 | 315 |
| 8 | 6 | 12 | 23 | 16 | 31 | 14 | 17 | 15 | AS08L | 315 | 315 | |
| 10 | 8 | 14 | 25 | 18 | 33 | 17 | 19 | 22 | AS10L | 315 | 315 | |
| 12 | 10 | 16 | 25 | 18 | 33 | 19 | 22 | 25 | AS12L | 315 | 315 | |
| 15 | 12 | 19 | 29 | 22 | 37 | 22 | 27 | 44 | AS15L | 315 | 315 | |
| 18 | 15 | 22 | 31 | 23.5 | 40 | 27 | 32 | 67 | AS18L | 315 | 315 | |
| 22 | 19 | 27 | 36 | 28.5 | 45 | 32 | 36 | 98 | AS22L | 160 | 160 | |
| 28 | 24 | 32 | 38 | 30.5 | 47 | 41 | 41 | 165 | AS28L | 160 | 160 | |
| 35 | 30 | 40 | 43 | 32.5 | 54 | 46 | 50 | 232 | AS35L | 160 | 160 | |
| 42 | 36 | 46 | 46 | 35 | 58 | 55 | 60 | 342 | AS42L | 160 | 160 | |
| S | 6 | 4 | 11 | 26 | 19 | 34 | 14 | 17 | 21 | AS06S | 630 | 630 |
| 8 | 5 | 13 | 28 | 21 | 36 | 17 | 19 | 31 | AS08S | 630 | 630 | |
| 10 | 7 | 15 | 30 | 22.5 | 39 | 19 | 22 | 41 | AS10S | 630 | 630 | |
| 12 | 8 | 17 | 32 | 24.5 | 41 | 22 | 24 | 93 | AS12S | 630 | 630 | |
| 16 | 12 | 21 | 35 | 26.5 | 45 | 27 | 30 | 82 | AS16S | 400 | 400 | |
| 20 | 16 | 26 | 40 | 29.5 | 51 | 32 | 36 | 131 | AS20S | 400 | 400 | |
| 25 | 20 | 31 | 44 | 32 | 56 | 41 | 46 | 219 | AS25S | 400 | 400 | |
| 30 | 25 | 36 | 49 | 35.5 | 62 | 46 | 50 | 297 | AS30S | 400 | 400 | |
| 38 | 32 | 44 | 54 | 38 | 69 | 55 | 60 | 448 | AS38S | 315 | 315 | |
