硬管系列—SKA返回 >>
概 况型号参数

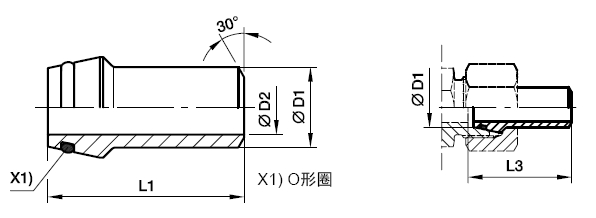

SKA EO24°-O形圈/焊接端 焊接接管
| 系列 | 钢管外径 | 重量 | PN (bar) | ||||||
| D1 | D2 | L1 | L3 | 适用钢管 | g/件 | 订货号 | 碳钢 | 不锈钢 | |
| L/S | 6 | 3 | 31 | 31.5 | 06X1.5 | 7 | SKA06X1.5 | 528 | 539 |
| 8 | 4.5 | 31 | 31.5 | 08X1.5 | 11 | SKA08X1.5 | 414 | 424 | |
| 8 | 4 | 31 | 31.5 | 08X2.0 | 11 | SKA08X2 | 528 | 539 | |
| 10 | 8 | 32.5 | 33.5 | 10X1.0 | 13 | SKA10X1 | 249 | 242 | |
| 10 | 7 | 32.5 | 33.5 | 10X1.5 | 13 | SKA10X1.5 | 358 | 349 | |
| 10 | 6 | 32.5 | 33.5 | 10X2.0 | 16 | SKA10X2 | 460 | 447 | |
| 12 | 9 | 32.5 | 33.5 | 12X1.5 | 21 | SKA12X1.5 | 305 | 297 | |
| 12 | 8 | 32.5 | 33.5 | 12X2.0 | 20 | SKA12X2 | 393 | 383 | |
| 12 | 7 | 32.5 | 33.5 | 12X2.5 | 22 | SKA12X2.5 | 476 | 463 | |
| L | 15 | 11 | 34 | 34.5 | 15X2.0 | 29 | SKA15X2 | 315 | 315 |
| 15 | 10 | 34 | 34.5 | 15X2.5 | 31 | SKA15X2.5 | 315 | 315 | |
| 18 | 13 | 35.5 | 36.5 | 18X2.5 | 40 | SKA18X2.5 | 315 | 315 | |
| 22 | 17 | 38.5 | 39.5 | 22X2.5 | 57 | SKA22X2.5 | 160 | 160 | |
| 28 | 23 | 41.5 | 42.5 | 28X2.5 | 73 | SKA28X2.5 | 160 | 160 | |
| 28 | 22 | 41.5 | 42.5 | 28X3.0 | 89 | SKA28X3 | 160 | 160 | |
| 35 | 28 | 47.5 | 49.5 | 35X3.5 | 140 | SKA35X3.5 | 160 | 160 | |
| 35 | 27 | 47.5 | 49.5 | 35X4.0 | 150 | SKA35X4 | 160 | 160 | |
| 42 | 36 | 47.5 | 50 | 42X3.0 | 155 | SKA42X3 | 160 | 160 | |
| 42 | 34 | 47.5 | 50 | 42X4.0 | 190 | SKA42X4 | 160 | 160 | |
| S | 16 | 13 | 39 | 40.5 | 16X1.5 | 32 | SKA16X1.5 | 234 | 228 |
| 16 | 12 | 39 | 40.5 | 16X2.0 | 31 | SKA16X2 | 305 | 297 | |
| 16 | 11 | 39 | 40.5 | 16X2.5 | 38 | SKA16X2.5 | 372 | 362 | |
| 16 | 10 | 39 | 40.5 | 16X3.0 | 41 | SKA16X3 | 400 | 400 | |
| 20 | 16 | 45 | 47 | 20X2.0 | 57 | SKA20X2 | 249 | 242 | |
| 20 | 15 | 45 | 47 | 20X2.5 | 57 | SKA20X2.5 | 305 | 297 | |
| 20 | 14 | 45 | 47 | 20X3.0 | 64 | SKA20X3 | 358 | 349 | |
| 20 | 13 | 45 | 47 | 20X3.5 | 71 | SKA20X3.5 | 400 | 400 | |
| 20 | 12 | 45 | 47 | 20X4.0 | 78 | SKA20X4 | 400 | 400 | |
| 25 | 19 | 49.5 | 53 | 25X3.0 | 89 | SKA25X3 | 294 | 286 | |
| 25 | 18 | 49.5 | 53 | 25X3.5 | 100 | SKA25X3.5 | 337 | 328 | |
| 25 | 17 | 49.5 | 53 | 25X4.0 | 111 | SKA25X4 | 379 | 369 | |
| 25 | 15 | 49.5 | 53 | 25X5.0 | 125 | SKA25X5 | 400 | 400 | |
| 30 | 24 | 52 | 57 | 30X3.0 | 113 | SKA30X3 | 249 | 242 | |
| 30 | 22 | 52 | 57 | 30X4.0 | 141 | SKA30X4 | 323 | 314 | |
| 30 | 20 | 52 | 57 | 30X5.0 | 166 | SKA30X5 | 393 | 383 | |
| 30 | 18 | 52 | 57 | 30X6.0 | 188 | SKA30X6 | 400 | 400 | |
| 38 | 32 | 56.5 | 64 | 38X3.0 | 163 | SKA38X3 | 200 | 195 | |
| 38 | 30 | 56.5 | 64 | 38X4.0 | 209 | SKA38X4 | 261 | 254 | |
| 38 | 28 | 56.5 | 64 | 38X5.0 | 247 | SKA38X5 | 315 | 315 | |
| 38 | 26 | 56.5 | 64 | 38X6.0 | 270 | SKA38X6 | 315 | 315 | |
| 38 | 24 | 56.5 | 64 | 38X7.0 | 270 | SKA38X7 | 315 | 315 | |
