硬管系列—WH-M-KDS返回 >>
概 况型号参数

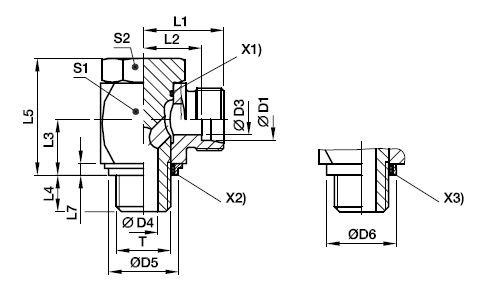

WH-M-KDS/KD EO24°锥/公制外螺纹带弹性密封圈 高压铰接式接头
| 系列 | 钢管外径 | KDS | KD | 重量 | PN(bar) | |||||||||||
| D1 | T | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L7 | g/件 | 订货号 | CF | 71 | |
| L | 6 | M10X1.0 | 4 | 4.5 | 14.9 | 17 | 19 | 12 | 10.5 | 8 | 24 | 2.5 | 54 | WH06LMKDSOMD | 315 | 315 |
| 8 | M12X1.5 | 6 | 6 | 17 | 22 | 21.5 | 14.5 | 14 | 12 | 30 | 3 | 97 | WH08LMKDSOMD | 315 | 315 | |
| 10 | M14X1.5 | 8 | 6 | 18.9 | 22.5 | 22.5 | 15.5 | 14 | 12 | 30 | 3 | 104 | WH10LMKDSOMD | 315 | 315 | |
| 12 | M16X1.5 | 10 | 7.5 | 21.9 | 27 | 25 | 18 | 16.5 | 12 | 36 | 3 | 180 | WH12LMKDSOMD | 315 | 315 | |
| 15 | M18X1.5 | 11 | 9 | 23.9 | 29 | 27.5 | 21.5 | 18.5 | 12 | 39.5 | 3 | 244 | WH15LMKDSOMD | 315 | 315 | |
| 18 | M22X1.5 | 15 | 12 | 26.9 | 32 | 28.5 | 21 | 21.5 | 14 | 45 | 4.5 | 327 | WH18LMKDSOMD | 315 | 315 | |
| 22 | M26X1.5 | 19 | 17 | 31.9 | 41 | 35 | 27.5 | 24 | 16 | 53 | 3.5 | 573 | WH22LMKDSOMD | 160 | 160 | |
| 28 | M33X2.0 | 24 | 21 | 39.9 | 46 | 39.5 | 32 | 30.5 | 18 | 66 | 3.5 | 1017 | WH28LMKDSOMD | 160 | 160 | |
| 35 | M42X2.0 | 30 | 27 | 49.9 | 57 | 46.5 | 36 | 35.5 | 20 | 76 | 3.5 | 1512 | WH35LMKDSOMD | 160 | 160 | |
| 42 | M48X2.0 | 36 | 34 | 55.9 | 64 | 51.5 | 40.5 | 40.5 | 22 | 87 | 3.5 | 2217 | WH42LMKDSOMD | 160 | 160 | |
| S | 6 | M12X1.5 | 4 | 6 | 17 | 22 | 23.5 | 16.5 | 14 | 12 | 30 | 3 | 104 | WH06SMKDSOMD | 400 | 400 |
| 8 | M14X1.5 | 5 | 6 | 18.9 | 22.5 | 23.5 | 16.5 | 14 | 12 | 30 | 3 | 110 | WH08SMKDSOMD | 400 | 400 | |
| 10 | M16X1.5 | 7 | 7.5 | 21.9 | 27 | 26 | 18.5 | 16.5 | 12 | 36 | 3 | 186 | WH10SMKDSOMD | 400 | 400 | |
| 12 | M18X1.5 | 8 | 9 | 23.9 | 29 | 27.5 | 20 | 18.5 | 12 | 39.5 | 3 | 246 | WH12SMKDSOMD | 400 | 400 | |
| 16 | M22X1.5 | 12 | 12 | 26.9 | 32 | 30.5 | 22 | 21.5 | 14 | 45 | 4.5 | 327 | WH16SMKDSOMD | 315 | 315 | |
| 20 | M27X2.0 | 16 | 16 | 32.9 | 41 | 37 | 26.5 | 24 | 16 | 53 | 3.5 | 598 | WH20SMKDSOMD | 315 | 315 | |
| 25 | M33X2.0 | 20 | 21 | 39.9 | 46 | 43.5 | 31.5 | 30.5 | 18 | 66 | 3.5 | 1055 | WH25SMKDSOMD | 250 | 250 | |
| 30 | M42X2.0 | 25 | 27 | 49.9 | 57 | 50.5 | 37 | 35.5 | 20 | 76 | 3.5 | 1572 | WH30SMKDSOMD | 160 | 160 | |
| 38 | M48X2.0 | 32 | 34 | 55.9 | 64 | 57.5 | 41.5 | 40.5 | 22 | 87 | 3.5 | 2317 | WH38SMKDSOMD | 160 | 160 | |
