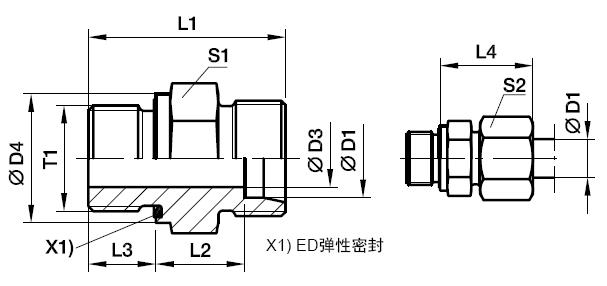

GE-R-ED BSPP外螺纹带ED密封(ISO 1179)/EO24°锥端直通接头

系列	钢管外径										重量		PN(bar)
	D1	T1	D3	D4	L1	L2	L3	L4	S1	S2	g/件	订货号	CF	71	SS
L	6	G1/8A	4	14	23.5	8.5	8	23	14	14	13	GE06LREDOMD	500	315	315
	6	G1/4A	4	19	29	10	12	25	19	14	28	GE06LR1/4EDOMD	500	315	315
	6	G3/8A	4	22	30.5	11.5	12	26	22	14	44	GE06LR3/8EDOMD	420	315	315
	6	G1/2A	4	27	33	12	14	27	27	14	61	GE06LR1/2EDOMD	400	315	315
	8	G1/4A	6	19	29	10	12	25	19	17	27	GE08LREDOMD	500	315	315
	8	G1/8A	4	14	24.5	9.5	8	24	14	17	16	GE08LR1/8EDOMD	500	315	315
	8	G3/8A	6	22	30.5	11.5	12	26	22	17	45	GE08LR3/8EDOMD	420	315	315
	8	G1/2A	6	27	33	12	14	27	27	17	74	GE08LR1/2EDOMD	400	315	315
	10	G1/4A	6	19	30	11	12	26	19	19	29	GE10LREDOMD	500	315	315
	10	G1/8A	4	14	25.5	10.5	8	25	17	19	21	GE10LR1/8EDOMD	500	315	315
	10	G3/8A	8	22	31.5	12.5	12	27	22	19	43	GE10LR3/8EDOMD	420	315	315
	10	G1/2A	8	27	34	13	14	28	27	19	71	GE10LR1/2EDOMD	400	315	315
	12	G3/8A	9	22	31.5	12.5	12	27	22	22	41	GE12LREDOMD	420	315	315
	12	G1/8A	4	14	26.5	11.5	8	26	19	22	26	GE12LR1/8EDOMD	420	315	315
	12	G1/4A	6	19	31	12	12	27	19	22	31	GE12LR1/4EDOMD	400	315	315
	12	G1/2A	10	27	34	13	14	28	27	22	67	GE12LR1/2EDOMD	400	315	315
	12	G3/4A	10	32	37	14	16	29	32	22	118	GE12LR3/4EDOMD	250	160	160
	15	G1/2A	11	27	35	14	14	29	27	27	72	GE15LREDOMD	400	315	315
	15	G3/8A	9	22	32.5	13.5	12	29	24	27	54	GE15LR3/8EDOMD	400	315	315
	15	G3/4A	12	32	38	15	16	30	32	27	116	GE15LR3/4EDOMD	250	160	160
	18	G1/2A	14	27	36	14.5	14	31	27	32	71	GE18LREDOMD	400	315	315
	18	G3/8A	9	22	33.5	14	12	30	27	32	66	GE18LR3/8EDOMD	400	315	315
	18	G3/4A	15	32	38	14.5	16	31	32	32	110	GE18LR3/4EDOMD	250	160	160
	22	G3/4A	18	32	40	16.5	16	33	32	36	102	GE22LREDOMD	250	160	160
	22	G1/2A	14	27	38	16.5	14	33	32	36	91	GE22LR1/2EDOMD	250	160	160
	22	G1A	19	40	43	17.5	18	34	41	36	189	GE22LR1EDOMD	250	160	160
	28	G1A	23	40	43	17.5	18	34	41	41	170	GE28LREDOMD	250	160	160
	28	G3/4A	18	32	41	17.5	16	34	41	41	159	GE28LR3/4EDOMD	250	160	160
	28	G11/4A	24	50	46	18.5	20	35	50	41	316	GE28LR11/4EDOMD	250	160	160
	35	G11/4A	30	50	48	17.5	20	39	50	50	272	GE35LREDOMD	250	160	160
	35	G1A	23	40	46	17.5	18	39	46	50	226	GE35LR1EDOMD	250	160	160
	35	G11/2A	30	55	52	19.5	22	41	55	50	423	GE35LR11/2EDOMD	250	160	160
	42	G11/2A	36	55	52	19	22	42	55	60	343	GE42LREDOMD	250	160	160
	42	G1A	23	40	48	19	18	42	55	60	324	GE42LR1EDOMD	250	160	160
	42	G11/4A	30	50	50	19	20	42	55	60	348	GE42LR11/4EDOMD	250	160	160
S	6	G1/4A	4	19	32	13	12	28	19	17	35	GE06SREDOMD	800	630	630
	6	G1/8A	4	14	27.5	12.5	8	27	14	17	21	GE06SR1/8EDOMD	500	315	315
	6	G3/8A	4	22	34.5	15.5	12	30	22	17	52	GE06SR3/8EDOMD	630	630	630
	6	G1/2A	4	27	39	18	14	33	27	17	83	GE06SR1/2EDOMD	630	400	400
	8	G1/4A	5	19	34	15	12	30	19	19	41	GE08SREDOMD	800	630	630
	8	G3/8A	5	22	34.5	15.5	12	30	22	19	57	GE08SR3/8EDOMD	800	630	630
	8	G1/2A	5	27	39	18	14	33	27	19	89	GE08SR1/2EDOMD	630	400	400
	10	G3/8A	7	22	34.5	15	12	31	22	22	55	GE10SREDOMD	800	630	630
	10	G1/4A	5	19	34	14.5	12	31	19	22	42	GE10SR1/4EDOMD	800	630	630
	10	G1/2A	7	27	39	17.5	14	34	27	22	97	GE10SR1/2EDOMD	630	630	630
	12	G3/8A	8	22	36.5	17	12	33	22	24	62	GE12SREDOMD	630	630	630
	12	G1/4A	5	19	36	16.5	12	33	22	24	61	GE12SR1/4EDOMD	630	630	630
	12	G1/2A	8	27	39	17.5	14	34	27	24	99	GE12SR1/2EDOMD	630	630	630
	16	G1/2A	12	27	41	18.5	14	37	27	30	91	GE16SREDOMD	630	400	400
	16	G3/8A	8	22	38.5	18	12	36	27	30	83	GE16SR3/8EDOMD	630	400	400
	16	G3/4A	12	32	45	20.5	16	39	32	30	152	GE16SR3/4EDOMD	420	400	400
	20	G3/4A	16	32	47	20.5	16	42	32	36	149	GE20SREDOMD	420	400	400
	20	G1/2A	12	27	45	20.5	14	42	32	36	142	GE20SR1/2EDOMD	420	400	400
	20	G1A	16	40	51	22.5	18	44	41	36	265	GE20SR1EDOMD	420	400	400
	20	G11/4A	16	50	53	22.5	20	44	50	36	404	GE20SR11/4EDOMD	420	400	400
	25	G1A	20	40	53	23	18	47	41	46	266	GE25SREDOMD	420	400	400
	25	G1/2A	12	27	49	23	14	47	41	46	228	GE25SR1/2EDOMD	420	400	400
	25	G3/4A	16	32	51	23	16	47	41	46	255	GE25SR3/4EDOMD	420	400	400
	25	G11/4A	20	50	55	23	20	47	50	46	411	GE25SR11/4EDOMD	420	400	400
	25	G11/2A	20	55	60	26	22	50	55	46	549	GE25SR11/2EDOMD	315	315	315
	30	G11/4A	25	50	57	23.5	20	50	50	50	418	GE30SREDOMD	420	400	400
	30	G1A	20	40	55	23.5	18	50	46	50	344	GE30SR1EDOMD	420	400	400
	30	G11/2A	25	55	62	26.5	22	53	55	50	530	GE30SR11/2EDOMD	315	315	315
	38	G11/2A	32	55	64	26	22	57	55	60	563	GE38SREDOMD	420	315	315
	38	G11/4A	25	50	62	26	20	57	55	60	575	GE38SR11/4EDOMD	420	315	315
