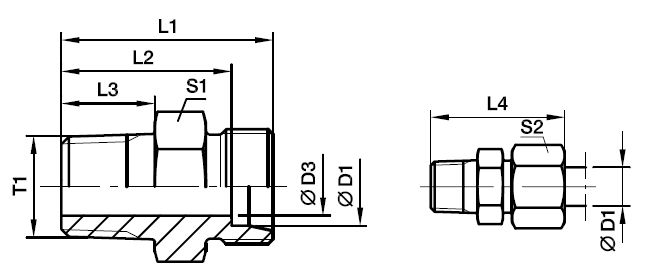

GE-NPT NPT外螺纹(SAE J476)/ EO24°锥端直通接头

系列	钢管外径									重量		PN(bar)
系列	钢管外径									重量		PN(bar)
	D1	T1	D3	L1	L2	L3	L4	S1	S2	g/件	订货号	CF	71	SS
L	6	1/8-27NPT	4	24	17	10	32	12	14	12	GE06L1/8NPT	315	315	315
	6	1/4-18NPT	4	30	23	14.5	38	17	14	27	GE06L1/4NPT	315	315
	6	3/8-18NPT	4	30	23	14.5	38	19	14	32	GE06L3/8NPT	315	315
	6	1/2-14NPT	4	36	29	19.5	44	22	14	53	GE06L1/2NPT	315	315
	8	1/8-27NPT	4	25	18	10	33	14	17	16	GE08L1/8NPT	315	315
	8	1/4-18NPT	6	30	23	14.5	38	17	17	25	GE08L1/4NPT	315	315	315
	8	3/8-18NPT	6	30	23	14.5	38	19	17	34	GE08L3/8NPT	315	315
	8	1/2-14NPT	6	36	29	19.5	44	22	17	54	GE08L1/2NPT	315	315
	10	1/8-27NPT	4	25	18	10	33	17	19	19	GE10L1/8NPT	315	315
	10	1/4-18NPT	7	31	24	14.5	39	17	19	25	GE10L1/4NPT	315	315	315
	10	3/8-18NPT	7	32	25	14.5	40	19	19	40	GE10L3/8NPT	315	315
	10	1/2-14NPT	8	37	30	19.5	45	22	19	54	GE10L1/2NPT	315	315
	10	3/4-14NPT	8	38	31	19.5	46	30	19	93	GE10L3/4NPT	315	315
	12	1/8-27NPT	4	26	19	10	34	19	22	52	GE12L1/8NPT	315	315
	12	1/4-18NPT	7	32	25	14.5	40	19	22	31	GE12L1/4NPT	315	315
	12	3/8-18NPT	8	32	25	14.5	40	19	22	37	GE12L3/8NPT	315	315	315
	12	1/2-14NPT	10	37	30	19.5	45	22	22	62	GE12L1/2NPT	315	315
	15	3/8-18NPT	8	33	26	14.5	41	24	27	53	GE15L3/8NPT	315	315
	15	1/2-14NPT	12	38	31	19.5	46	24	27	63	GE15L1/2NPT	315	315	315
	15	3/4-14NPT	12	39	32	19.5	47	30	27	112	GE15L3/4NPT	315	315
	15	1-11.5NPT	12	45	38	24.5	53	36	27	158	GE15L1NPT	315	315
	18	3/8-18NPT	8	34	26.5	14.5	43	27	32	69	GE18L3/8NPT	315	315
	18	1/2-14NPT	12	39	31.5	19.5	48	27	32	79	GE18L1/2NPT	315	315
	18	3/4-14NPT	15	39	31.5	19.5	48	30	32	104	GE18L3/4NPT	315	315
	18	1-11.5NPT	15	45	37.5	24.5	54	36	32	159	GE18L1NPT	315	315
	22	3/8-18NPT	8	36.5	29	14.5	45	32	36	91	GE22L3/8NPT	160	160
	22	1/2-14NPT	12	41	33.5	19.5	50	32	36	96	GE22L1/2NPT	160	160
	22	3/4-14NPT	16	41	33.5	19.5	50	32	36	108	GE22L3/4NPT	160	160	160
	22	1-11.5NPT	19	47	39.5	24.5	56	36	36	174	GE22L1NPT	160	160
	28	3/4-14NPT	16	42	34.5	19.5	51	41	41	157	GE28L3/4NPT	160	160
	28	1-11.5NPT	21	47	39.5	24.5	56	41	41	197	GE28L1NPT	160	160	160
	28	11/4-11.5NPT	24	49	41.5	25	58	46	41	266	GE28L11/4NPT	160	160
	35	1-11.5NPT	22	50	39.5	24.5	61	46	50	280	GE35L1NPT	160	160
	35	11/4-11.5NPT	28	51	40.5	25	62	46	50	285	GE35L11/4NPT	160	160	160
	42	11/4-11.5NPT	28	53	42	25	65	55	60	382	GE42L11/4NPT	160	160
	42	11/2-11.5NPT	36	53	42	26	65	55	60	377	GE42L11/2NPT	160	160	160
S	6	1/8-27NPT	4	28	21	10	36	14	17	21	GE06S1/8NPT	630	630
	6	1/4-18NPT	4	35	28	14.5	43	17	17	37	GE06S1/4NPT	630	630	630
	6	3/8-18NPT	4	33	26	14.5	41	19	17	40	GE06S3/8NPT	630	630
	6	1/2-14NPT	4	42	35	19.5	50	22	17	71	GE06S1/2NPT	630	630
	8	1/4-18NPT	5	35	28	14.5	43	17	19	38	GE08S1/4NPT	630	630	630
	8	3/8-18NPT	5	35	28	14.5	43	19	19	46	GE08S3/8NPT	630	630
	8	1/2-14NPT	5	42	35	19.5	50	22	19	73	GE08S1/2NPT	630	630
	10	1/4-18NPT	5	35	27.5	14.5	44	19	22	45	GE10S1/4NPT	630	630
	10	3/8-18NPT	7	35	27.5	14.5	44	19	22	49	GE10S3/8NPT	630	630	630
	10	1/2-14NPT	7	42	34.5	19.5	51	22	22	73	GE10S1/2NPT	630	630
	10	3/4-14NPT	7	44	36.5	19.5	53	30	22	125	GE10S3/4NPT	630	630
	12	1/4-18NPT	5	37	29.5	14.5	46	22	24	57	GE12S1/4NPT	630	630
	12	3/8-18NPT	8	37	29.5	14.5	46	22	24	62	GE12S3/8NPT	630	630	630
	12	1/2-14NPT	8	42	34.5	19.5	51	22	24	83	GE12S1/2NPT	630	630
	12	3/4-14NPT	8	44	36.5	19.5	53	30	24	126	GE12S3/4NPT	630	630
	16	3/8-18NPT	8	39	30.5	14.5	49	27	30	84	GE16S3/8NPT	400	400
	16	1/2-14NPT	12	48	39.5	19.5	58	32	30	97	GE16S1/2NPT	400	400	400
	16	3/4-14NPT	12	46	37.5	19.5	56	30	30	130	GE16S3/4NPT	400	400
	16	1-11.5NPT	12	51	42.5	24.5	61	36	30	178	GE16S1NPT	400	400
	20	1/2-14NPT	12	48	37.5	19.5	59	32	36	144	GE20S1/2NPT	400	400
	20	3/4-14NPT	16	48	37.5	19.5	59	32	36	149	GE20S3/4NPT	400	400	400
	20	1-11.5NPT	16	55	44.5	24.5	66	36	36	243	GE20S1NPT	400	400
	25	3/4-14NPT	16	52	40	19.5	64	41	46	240	GE25S3/4NPT	400	400
	25	1-11.5NPT	20	57	45	24.5	69	41	46	278	GE25S1NPT	400	400	400
	25	11/4-11.5NPT	20	58	46	25	70	46	46	396	GE25S11/4NPT	400	400
	25	11/2-11.5NPT	20	61	49	26	73	50	46	469	GE25S11/2NPT	400	400
	30	3/4-14NPT	16	54	40.5	19.5	67	46	50	307	GE30S3/4NPT	400	400
	30	1-11.5NPT	20	59	45.5	24.5	72	46	50	343	GE30S1NPT	400	400
	30	11/4-11.5NPT	25	60	46.5	25	73	46	50	397	GE30S11/4NPT	400	400	400
	30	11/2-11.5NPT	25	60	46.5	26	73	50	50	440	GE30S11/2NPT	400	400
	38	1-11.5NPT	22	64	48	24.5	79	55	60	510	GE38S1NPT	315	315
	38	11/4-11.5NPT	25	65	49	25	80	55	60	535	GE38S11/4NPT	315	315
	38	11/2-11.5NPT	32	65	49	26	80	55	60	571	GE38S11/2NPT	315	315	315
